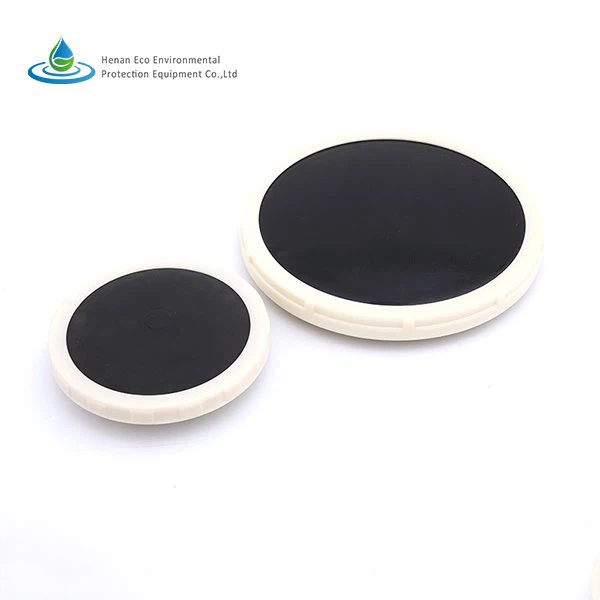

Disc Diffuser
Lub disc diffuser txais ABS engineering yas ua lub cev tseem ceeb thiab tau them nrog cov roj hmab tshwj xeeb EPDM lossis silicone microporous membrane.
Hauj lwm lawm
LK-BP Microporous Membrane Cua Disc Diffuser
Txheej txheem cej luam
LK-BP Microporous Membrane Air disc diffuser siv rau hauv kev muab cov pa rau kev rhuav tshem cov kab mob hauv cov txheej txheem kev kho mob lom neeg, los ntawm kev hloov pauv oxygen siab. Lub disc diffuser txais ABS engineering yas ua lub cev tseem ceeb thiab tau them nrog cov roj hmab tshwj xeeb EPDM lossis silicone microporous membrane. Cov micro-qhov yuav cia li nthuav dav thaum cov nyiaj tau los ntawm huab cua thiab kaw thaum tsis muaj cua tuaj, uas tsis txhob muaj qhov thaiv ntawm qhov. Ib qho kev tsim tsis rov qab yog los tiv thaiv qhov sib xyaw kom nkag mus thiab thaiv cov kav dej. Cov huab cua tuaj tsis xav tau kev pom tshwj xeeb thiab cov khoom siv sib txuas ntawm cov cua tsis thaiv lub qhov thiab cov kav dej. |  |
Parameter
Khoom siv | ABS plus EPDM | ABS plus silicone | ||||
Specifications | D200 | D260 | D300 | D200 | D260 | D300 |
Sab nraud txoj kab uas hla (mm) | 215 | 280 | 330 | 215 | 280 | 330 |
Membrane txoj kab uas hla (mm) | 192 | 255 | 300 | 192 | 255 | 300 |
Membrane thickness (hli) | 2 | 2 | 2 | 2 | 2 | 2 |
Qhov taub (μm) | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
Bubble diameters (mm) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
Cua khiav ntau (Nm3/h) | 1~2.5 | 1~4 | 1~6 | 1~3 | 1~3 | 1~3 |
Nruab nrab cua ntws ntawm 4m (Nm3 / h) | 1.8 | 2.5 | 4 | 1.8 | 2.5 | 4 |
Max. Ua haujlwm kub (degree) | 80 | 80 | 80 | 100 | 100 | 100 |
