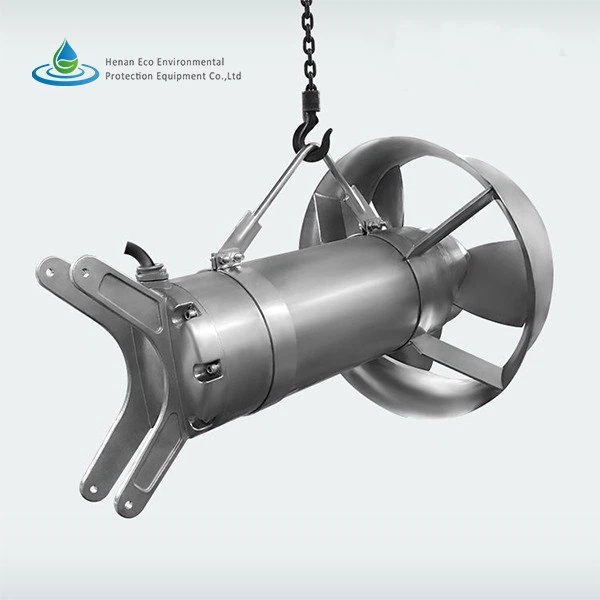

Submersible Mixer
LK-QJB Submersible tov khoom yog siv rau cov dej phwj tuaj kho cov nroj tsuag thiab cov chaw kho dej khib nyiab los tsim cov tangential txaus nrog quab yuam, kuj tseem siv tau los tsim cov dej ntws rau kev ncig, nitrification, denitrification thiab phosphorus tshem tawm.
Hauj lwm lawm
LK-QJB Submersible Tov Khoom Siv Dej Dej Kho Dej Cog
Txheej txheem cej luam
| LK-QJB Submersible tov khoom yog siv rau cov dej phwj tuaj kho cov nroj tsuag thiab cov chaw kho dej khib nyiab los tsim cov tangential txaus nrog quab yuam, kuj tseem siv tau los tsim cov dej ntws rau kev ncig, nitrification, denitrification thiab phosphorus tshem tawm. |  |
Nta
|
●Compact qauv, lub teeb yuag, yooj yim rau kev khiav lag luam thiab txij nkawm, yooj yim installation; |
|
● Cov hniav ntxuav tus kheej, tiv thaiv cov khib nyiab los ntawm kev sib tw lossis thaiv; |
|
● Lowers zog noj, siab aeration tus nqi tiv thaiv sedimentation; |
|
●Ob kab ntawm cov neeg kho tshuab ywj siab, lub neej ua haujlwm ntev; |
|
●Class F rwb thaiv tsev ntawm lub cev muaj zog winding, lub cev muaj zog tiv thaiv qib IP68, tuaj yeem ua haujlwm ruaj khov-lubricated tu-dawb bearings, chamber to detection, lub cev muaj zog winding overheating tiv thaiv; |
|
|
Cov xwm txheej ua haujlwm
● Ua kua kub: Tsawg dua lossis sib npaug li 40 degree
●PH: 5 ~ 9
● Kua ntom ntom: Tsawg dua lossis sib npaug li 1150kg / m3
● Max ua hauj lwm qhov tob: 20m
● Lub cev muaj zog: IP 68, 7/24 Kev ua haujlwm tsis tu ncua
● Lub cev muaj zog yuav tsum dhia hauv dej thaum ua haujlwm
Tsis muaj
|
LK-QJB Submersible tov khoom |
||||||
|
Qauv |
Lub zog (KW) |
Tam sim no (A) |
Lub impeller (mm) |
Ceev (r / min) |
Qhov hnyav (KG) |
Thrust(N) |
|
QJB0.37/6-220/3-960/S |
0.37 |
1.3 |
220 |
960 |
45 |
138 |
|
QJB0.55/4-220/3-1480/S |
0.55 |
1.6 |
220 |
1480 |
45 |
145 |
|
QJB0.85/8-260/3-740/S |
0.85 |
4 |
260 |
740 |
55 |
180 |
|
QJB1.5/6 260/3-960/S |
1.5 |
4 |
260 |
960 |
55 |
260 |
|
QJB2.2/8-320/3-740/S |
2.2 |
8 |
320 |
740 |
110 |
580 |
|
QJB4/6-320/3-960/S |
4 |
12 |
320 |
960 |
115 |
690 |
|
QJB1.5/8-400/3-740/S |
1.2 |
5.8 |
400 |
740 |
100 |
600 |
|
QJB2.5/8- 400/3-740/S |
2.5 |
9 |
400 |
740 |
100 |
800 |
|
QJB3/8-400/3-740/S |
3 |
11 |
400 |
740 |
100 |
920 |
|
QJB4/6-400/3-960/S |
4 |
12 |
400 |
960 |
100 |
1200 |
|
QJB4/12-620/3-480/S |
4 |
14.2 |
620 |
480 |
184 |
1400 |
|
QJB5/12-620/3-480/S |
5 |
18.2 |
620 |
480 |
184 |
1800 |
|
QJB7.5/12-620/3-480/S |
7.5 |
28 |
620 |
480 |
229 |
2600 |
|
QJB10/12-620/3 480/S |
10 |
32 |
620 |
480 |
229 |
3300 |
|
QJB15/12-620/3-480/S |
15 |
43 |
620 |
480 |
260 |
4000 |
|
QJB18.5/12-620/3-480/S |
18.5 |
51 |
620 |
480 |
276 |
4400 |
|
QJB22/12-620/3-480/S |
22 |
60 |
620 |
480 |
290 |
5300 |
Kev teeb tsa
Installation Ⅰ
1. Tank qhov tob H<3m
2. Kev taw qhia tuaj yeem hloov kho hauv kab rov tav thiab ntsug
3. Qhov tob ntawm kev taw qhia pas nrig yog 3 meters
Kev teeb tsaⅡ
1. When depth>4m, xav tau ntxiv lwm sab kev ua si rau ntawm tus pas nrig.
2. Kev sib txuas yuav tsum tau nthuav dav ntsia liaj qhov rooj ntawm sab kev txhawb nqa & lub tank phab ntsa, tuav & lub tank hauv qab.
3. Thov qhia lub tank qhov tob thaum koj muab xaj rau peb.
Kev teeb tsaⅢ
1. When depth>4m, xav tau ntxiv lwm sab kev ua si rau ntawm tus pas nrig.
2. Kev sib txuas yuav tsum tau nthuav dav ntsia liaj qhov rooj ntawm sab kev txhawb nqa & lub tank phab ntsa, tuav & lub tank hauv qab.
3. Thov qhia lub tank qhov tob thaum koj muab xaj rau peb.
